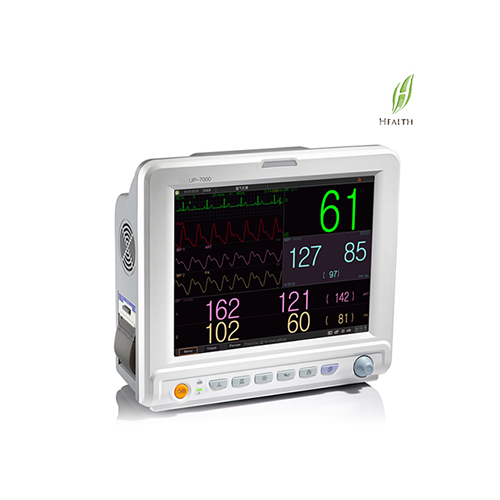

Patient Monitor UP-7000
Short Description
-Patient Monitor 12.1″inches
-NIBP customized 5-phase multi-cycle setting
-History data records review in waveform, list and trend graph
-12.1″ TFT display with optional touch screen
-Waveform freezing for S-T segment measurement and arrhythmia analysis
-Medication/Oxygenation/Ventilation /Renalfunction calculation
-Built-in lithium battery; Touch screen[/vc_column_text]
[/vc_column][/vc_row]
Device info
Technical Information
- 12.1” high resolution colour TFT display
- 3 channel ECG amplification
- Arrhythmia analysis and ST segment analysis
- Up to 800 groups parameter data & 24-hour ECG waveform storage and recall
- 480-hour graphic and tabular trends for all parameters
- 7 trace ECG waveforms simultaneous display
- Protection against interference from defibrillator
- Adult/pediatric measurement modes
- Visual and audible alarms
- Built-in rechargeable battery
- Built-in thermal printer
NIBP Monitoring
- Measuring method: Oscillometric
- Measuring range: Systolic pressure: Diastolic pressure: Mean arterial pressure:
- Adult: 40~255mmHg 10~220mmHg 20~215mmHg
- Pediatric: 40~200mmHg 10~110mmHg 20~165mmHg
TEMP Monitoring
- Measuring range: 25.0°C~45.0°C ±0.2°C
- Responce time: = 150 sec
SpO2 & Pulse Rate Monitoring
- SpO2 measuring range: 35%~100%
- PR measuring range: 30bpm~240bpm ±2bpm
ECG Monitoring
- Heart rate measurement: ±0.4mVp~±5mVp
- Heart rate display range: 20bpm~250bpm
RESP Monitoring
- Measuring method: Thorasic impedance
- Monitoring range 0rpm~120rpm,
- Monitoring accuracy: ±5% or ±2rpm whichever is greater
Other Technical Specifications
- Power supply 100~250Vac, 50/60Hz
- Power consumption: <80 VA
- Display mode 12.1 inches TFT color LCD
- Alarming mode Audible-visual alarm
- Networking por Ethernet port
Standard Accessories
- Adult SpO2 probe
- NIBP adult cuff
- Temperature probe
- ECG cable
- Re-chargeable battery
- Printer
- Power supply cable
- Disposable electrode
- Dust-protective mantle
- Manual (English, Italian)
