Features
-Quick setup, easy sighting and superior durability against shock and vibration
-Exceptionally bright and sharp view
-Advanced telescope
-Stadia
-Quick collimation
-Horizontal angle mensurement
-Fast, easy setupng IC card

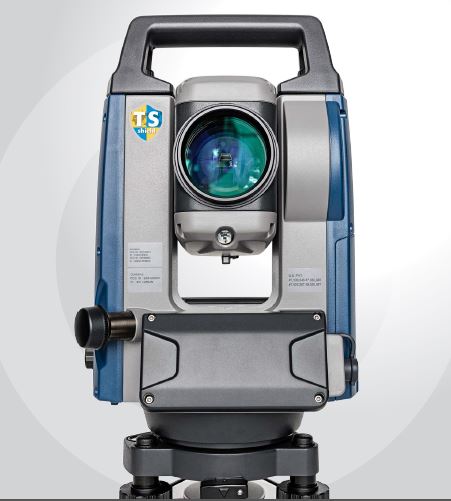

The Sokkia iM-100 Series Reflectorless Total Station is an intelligent measuring device that is easy-to-use and packed with advanced features. Perfect for entry-level site layout and surveying, this total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy. It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.
Featuring a coaxial red laser using EDM technology, the Sokkia iM-100 is faster, more accurate and powerful. It is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles. This reflectorless total station comes with a single graphic display for viewing measurements and 50,000 points of internal memory to store large amounts of field data. It also supports an SD flash drive up to 32GB.
This Sokkia total station includes a rechargeable Li-on battery that lasts up to 28 hours. Guaranteed to survive even the toughest job sites, the iM-100 series meets the IP66 rating so it is dustproof and protected against powerful jets of water.
The Sokkia iM-100 Series Reflectorless Total Station is available in four models with different accuracies. Please select your preference from the drop-down menu above.
General
|
|
Weight | 11.68 lbs (5.3 kg) |
Dimensions | 13.70″ L x 7.12″ W x 7.20″ H (34.8 cm x 18.1 cm x 18.3 cm) |
Warranty | 2-year |
Protection Class | IP66 dustproof and waterjet resistant |
Tripod Thread | 5/8 x 11 |
Internal Memory | Up to 50,000 points |
Tribrach | Fixed |
Auto-Tracking Speed | Initial 1.3 sec (0.4 sec) |
Guide Light | Green and Red LED (Range 4.3 ft. to 490 ft./1.3 m to 149 m) |
Angle Measurement
|
|
Minimum Reading | 1 second/5 second |
Accuracy | 1 second, 3 second, 5 second |
Distance Measurement
|
|
Unit of Measure (distance display) | m/ft/in |
EDM Accuracy (Precision) | ±(1.5 + 2ppm x D) mm; |
Tilt Sensor/Compensator
|
|
Range | ±6 degrees |
Type | Dual-axis |
Method | Liquid-tilt sensor |
Battery/Power
|
|
Power Source | Rechargeable Li-on batteries, BDC70 |
Battery Life | Up to 28 hours |
Level
|
|
Plate/Tubular Bubble Vial | Regional Dependent |
Circular Bubble Vial | 10 minutes (2 mm) |
Telescope
|
|
Length of Tube | 6.7 in (171 mm) |
Image | Erect |
Diameter of Objective Lens (Aperture) | 1.8 in (45 mm) |
Magnification | 30x |
Field of View | 1°30′ |
Resolving Power | 2.5″ |
Minimum Focus Distance | 4.3 ft. (1.3m) |
Reticle Illumination | 5 brightness levels |
Reflectorless | Yes |
Display and Keypad
|
|
Type | Graphic LCD |
Sides | Single |
Keys | Alphanumeric (28 keys) |
Backlight | Yes |
Pixels | 192 x 80 pixels |
Temperature
|
|
Operating | -4° to 144°F (-20° to 60°C) |
Applications
|
|
Surveying and Construction | Yes |
Environment Studies | Yes |
Archaeology | Yes |
Accident Reconstruction | Yes |
Measurement Range (under fair weather conditions)
|
|
Single Prism | Up to 19,680 ft. (6,000m) |
No Prism | Up to 1.0 to 2,624 ft. (0.3 to 800m) |
Mini Prism | Up to 4.3 to 8,200 ft. (1.3 to 2,500m) CPO1; Up to 4.3 to 1,640 ft. (1.3 to 500m) OR1PA |
Reflector Sheet | Up to 4.3 to 1,640 ft. (1.3 to 500m) RS90N-K; Up to (4.3 to 980 ft. (1.3 to 300m) RS50N-K; Up to 4.3 to 320ft. (1.3 to 100m) RS10N-K |
Functions
|
|
Coordinate Measurement Point | Yes |
Angle and Distance Stake Out | Yes |
Stake Out Line | Yes |
Offsets | Yes |
Missing Line | Yes |
Remote Elevation | Yes |
Resection | Yes |
Area Calculation | Yes |
Measurement Time
|
|
Fine | 0.9 seconds (initial 1.5 seconds) |
Rapid | 0.6 seconds (initial 1.3 seconds) |
Tracking | 0.4 seconds (initial 1.3 seconds) |
Laser Plummet
|
|
Accuracy | ±1/16 inch at 4.3 ft. (1.0 mm at 1.3 m) |
Class | Class 2 laser |
Wavelength | 635nm±10nm |
Laser Pointer
|
|
Class | Coaxial red laser using EDM beam |
Interface
|
|
Bluetooth | Bluetooth Class 1.5 |
USB | USB2.0 up to 32 gb flash memory |
Pin Port | RS-232C |
